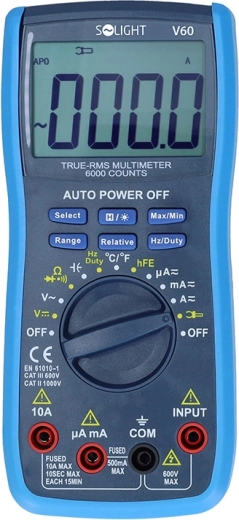

Solight professional digital True-RMS multimeter

13,90 €
Shipping from 3,90 €
External warehouse · At your place 30.09.
Product code: 332194-1
Free shipping on orders over €149.00
Hassle-free returns within 30 days
Fast delivery from 3,90 €
The Solight professional digital multimeter with a backlit LCD display and up to 6000 counts is ideal for service work, workshops, and more demanding electrical installations. It offers True-RMS AC measurement, HOLD, REL, and MAX/MIN functions, continuity test, diode and hFE transistor testing, and it also includes a dangerous voltage indication for higher safety during work.

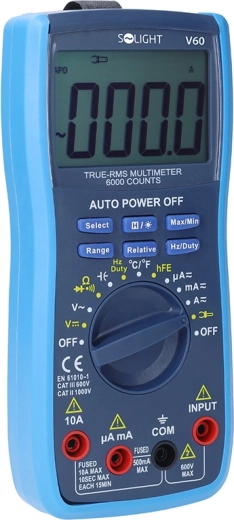

True-RMS and wide measurement range

True-RMS and wide measurement range

The multimeter supports True-RMS measurement of AC voltage and current for more accurate results even with non-sinusoidal waveforms. It can measure voltage up to 1000 V DC / 750 V AC, current up to 10 A, resistance up to 60 MΩ, as well as capacitance, frequency, and temperature.

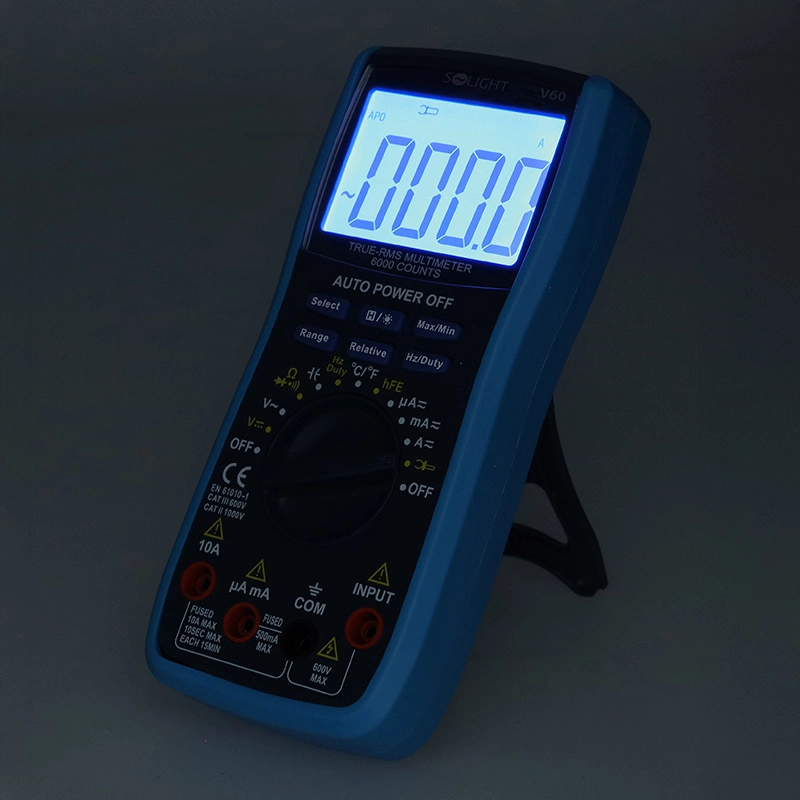

Clear backlit display and practical functions

Clear backlit display and practical functions

The large backlit LCD display (64 × 42 mm) with up to 6000 counts makes it easy to read measured values. Available functions include HOLD to freeze a value, REL for relative measurement, and MAX/MIN to record extremes.

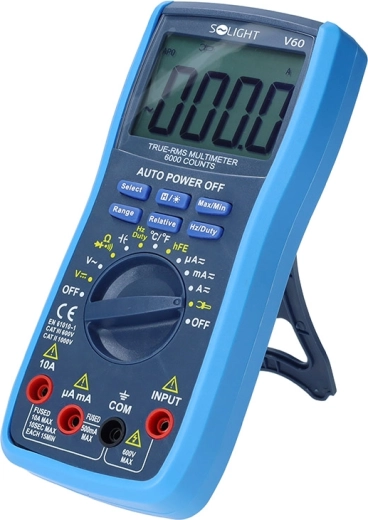

Stable support and easy handling

Stable support and easy handling

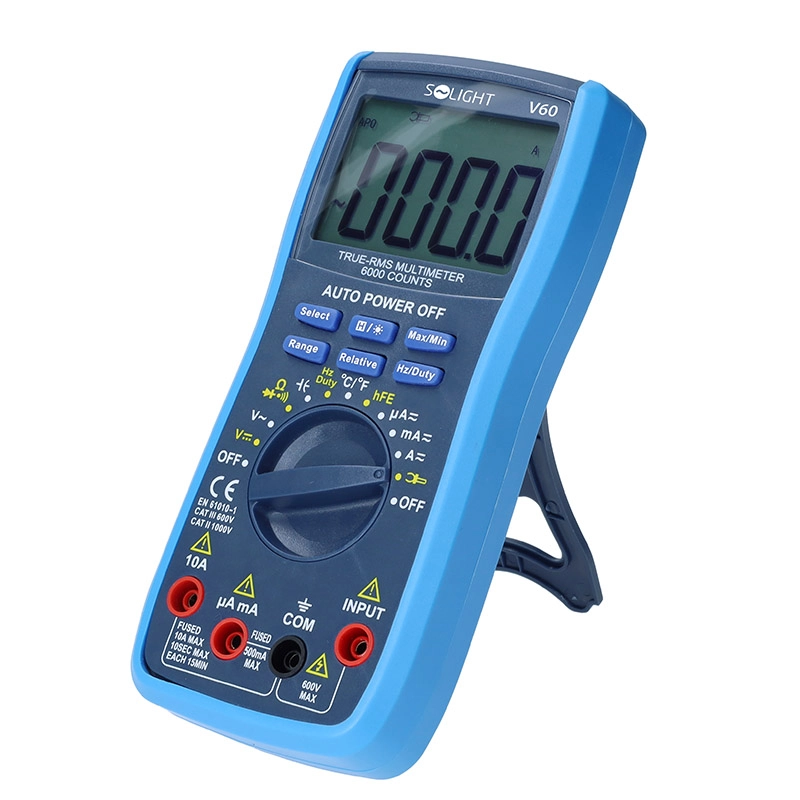

The integrated fold-out stand lets you place the multimeter conveniently for easier reading during measurement. The design is intended for practical use in a workshop and during service interventions.

The Solight professional multimeter is a reliable measuring instrument for accurate measurements at home and in professional operation. Thanks to the large backlit display (64 × 42 mm), values remain easy to read even in poorer lighting conditions. The instrument supports both manual and automatic measurement ranges and automatically switches off after longer inactivity (after 15 minutes), saving battery power.

The multimeter measures DC/AC voltage, DC/AC current, resistance, capacitance, frequency, and also temperature (with the included K-type thermocouple). Practical functions such as HOLD, REL, and MAX/MIN facilitate diagnostics and recording of deviations. For safer work, it features automatic polarity detection, dangerous voltage indication, and protection against overload and high voltage.

Main advantages:

  • True-RMS measurement of AC quantities
  • Backlit LCD display 64 × 42 mm, max. display 6000
  • HOLD, REL, MAX/MIN functions
  • Continuity test (buzzer), diode test, and hFE transistor test
  • Manual and automatic measurement range
  • Automatic switch-off after 15 minutes
  • Hanging option using a magnetic holder

Package contents: test leads, K-type thermocouple, multifunction socket for transistor testing, user manual.

Specifications

Type
digital professional multimeter
Display
backlit LCD, 64 × 42 mm
Maximum display
6000 counts
Functions
HOLD, REL (relative measurement), MAX/MIN, manual and automatic range
Automatic switch-off
yes, after 15 minutes of inactivity
Polarity detection
automatic
Dangerous voltage indication
yes
Continuity test
yes, buzzer
Diode test
yes (measuring forward voltage drop)
Transistor test
yes, hFE (PNP/NPN)
DC voltage measurement
600 mV – 1000 V (±0.8% + 3 digits up to ±1.0% + 5 digits)
AC voltage measurement (True-RMS)
600 mV – 750 V (±1.2% + 6 digits up to ±1.2% + 8 digits)
DC current measurement
600 µA – 10 A (±0.8% + 5 digits up to ±1.5% + 3 digits)
AC current measurement (True-RMS)
600 µA – 10 A (±1.5% + 8 digits up to ±2.0% + 10 digits)
Resistance measurement
600 Ω – 60 MΩ (±1.5% + 3 digits up to ±1.5% + 5 digits)
Capacitance measurement
60 nF – 60 mF (±8.0% + 5 digits)
Frequency measurement
10 Hz – 10 MHz (±1.0% + 5 digits)
Temperature measurement
-40 °C – 1000 °C
Low battery indication
yes, warning icon on the display
Overload protection
yes
High voltage protection
1000 V DC / 750 V AC
mA input fuse
F0.5 A / 600 V
10 A input fuse
F10 A / 600 V
Fuse replacement
without the need to remove from the housing
Safety standard
EN 61010 (CAT III 600 V, CAT II 1000 V)
Operating temperature
0 °C – 40 °C (< 80 % RH)
Storage temperature
-10 °C – 50 °C (< 85 % RH)
Power supply
9 V battery (6F22)
Dimensions (H × W × D)
190 × 90 × 35 mm
Weight
approx. 357 g
Package contents
test leads, K-type thermocouple, multifunction socket for transistor testing, user manual
